Explosion-proof series
Infrared explosion-proof network PTZ integrated machine
PB-3081CT
Features
The shell is made of 304 stainless steel;
Protection class IP66;
1 3/4" outlet hole;
Wiper available;
Rotation speed horizontal and vertical 5°/S;
Rotation Angle 360° horizontal, ±90° vertical;
Can install a variety of integrated cameras;
Upright installation, bracket installation or pedestal installation.
Parameters
Mechanical parameter |
material |
304 stainless steel |
Rotational speed |
Horizontal and vertical 5° /S |
|
Rotation Angle |
Horizontal 360°, vertical ±90° |
|
General norm |
Operating temperature |
-20℃ ~+60℃ |
Operating voltage |
AC24V |
|
Infrared distance |
80M |
|
weight |
20kg |
|
authentication |
Explosion-proof mark |
Ex db ⅡC T6 Gb |
Explosion proof certificate number |
GYB21.1050 X |

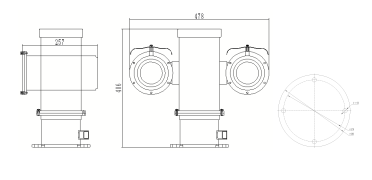

Outline Dimensional Drawing
